Board Edge Mounting Kit - Pack of 4

The PCB Mounting Standoff Kit provides a simple, secure way to mount PCBs without mounting holes, using clip-style standoffs and screws to hold standard 0.062" boards in place without glue or tape.

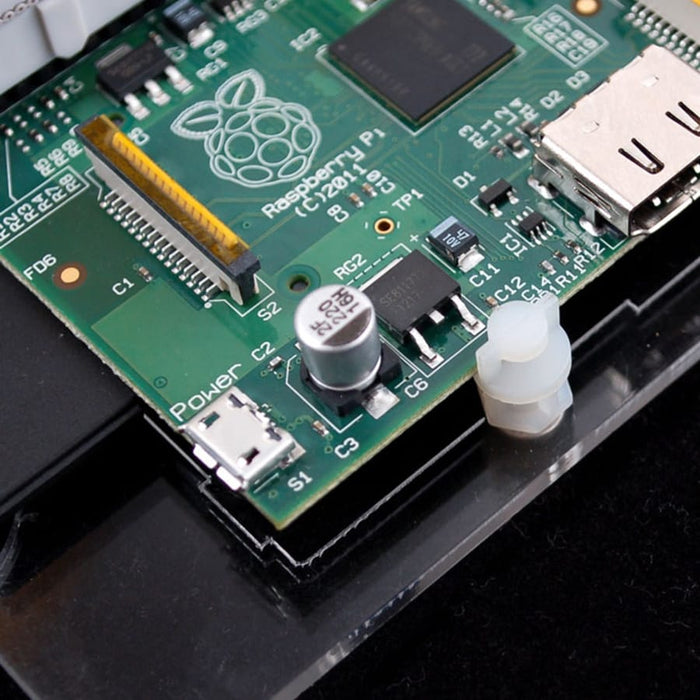

Having difficulty attaching a PCB? This kit is especially useful when there are no mounting holes - as with the original Raspberry Pi.

Instead of gluing, taping, epoxying, etc. use these elegant standoffs. They have these round hook things that are designed to grip standard 0.062" thickness PCBs either by the edge or by the corner.

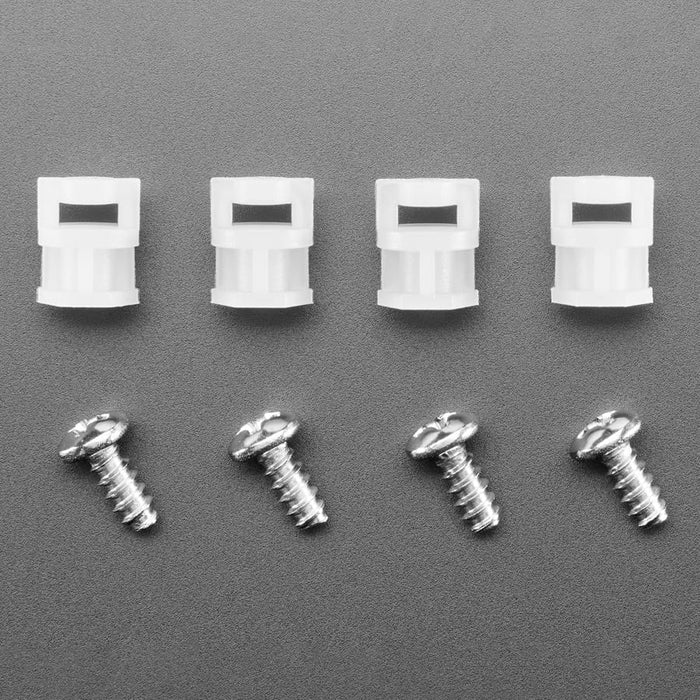

Comes in a pack of 4 with matching #6 thread forming screws. Ideal for use with up to 1/8" mounting material. We have these as part of the Pi Dish kit and they work really well!

Please note: Raspberry Pi not included.

Features

• Pack of 4 adhesive-free PCB standoffs
• Designed for PCBs without mounting holes
• Round hook grips standard 0.062" thickness PCBs
• Grips PCB edge or corner
• Includes matching #6 thread forming screws
• Compatible with up to 1/8" mounting material
• No gluing, taping or epoxying required

Resources

• Datasheet

Values for this item from the datasheet match part TCEHCBS-4-01: A: 1/4" (6.4mm) B: 13/64" (5.2mm)

Package Contents

• 1x Board Edge Mounting Kit - Pack of 4

Raspberry Pi not included.
